INVERTA®
PROFORGE® INVERTA® Short Disc Harrow Cultivator
OVERVIEW
The Inverta® is intended for high – speed, low cost residue inversion, or stale seedbed creation as an efficient short disc cultivator maximising productivity on many soil types and working conditions. This is one of our bestselling machines, we have supplied in excess of 500 INVERTA® machines since 2015.
KEY STRENGTH
Many years of development and refinement has brought about this very versatile machine. The Machine boasts 2 rows of class – leading 560mm (22”) Italian discs of 48 – 52 HRC hardness and SKF® sealed for life maintenance – free bearing hubs, for longevity and ultimate performance.
ECONOMY
“Had a close inspection yesterday of the INVERTA®. Amazing machine for the money, and of course heavy and very well built.”
”The machinery is built to a great standard and after now covering at least 1500 acres is showing no wear to the discs. Maintenance is minimal which is a plus point for getting output.”
TESTIMONIAL
“It has become a very versatile piece of machinery for us and can be used on stubble, cultivated or ploughed land and is extremely good value for money. It has been extremely important to us especially where we don’t want to cultivate deep and bring up blackgrass.”
Stephen Ellerbeck
ALL FEATURES
- High operating speeds 10 – 15km/h with low horsepower requirement
- Robust construction using selected profiles
- Strong central frame construction
- Extensive choice of machine widths (1.5m – 6m)

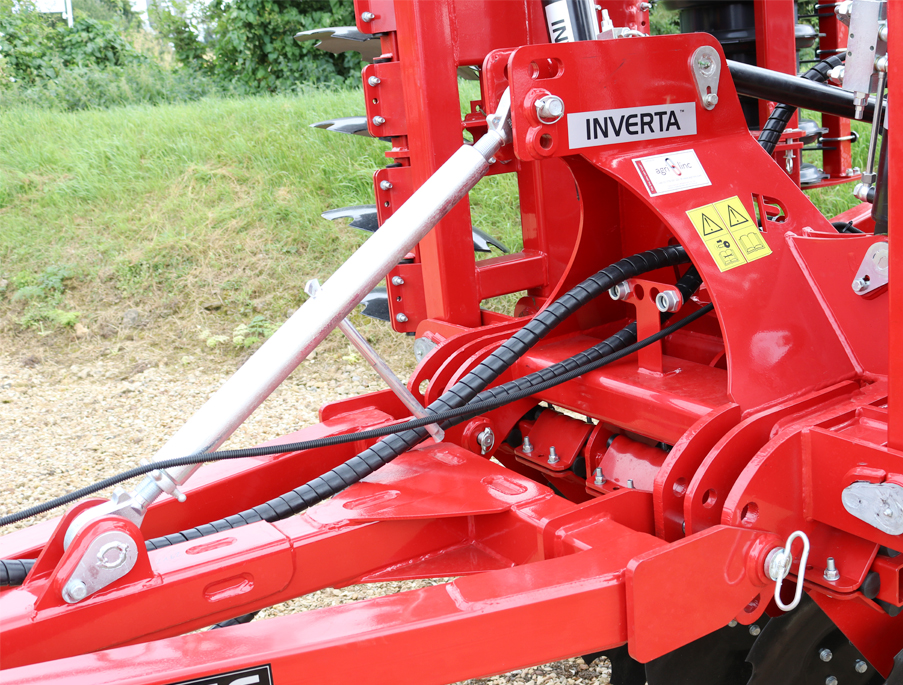

- Versatile headstock. All sizes come with the versatility of being either mounted or trailed, with trailed models having the flexibility of both mounting options
- Hydraulic lock down wings for even penetration across the whole width in hard and difficult conditions
- Class leading SKF® sealed for life maintenance – free bearing hubs
- Adjustable side shift on the front row of discs for best soil tillage

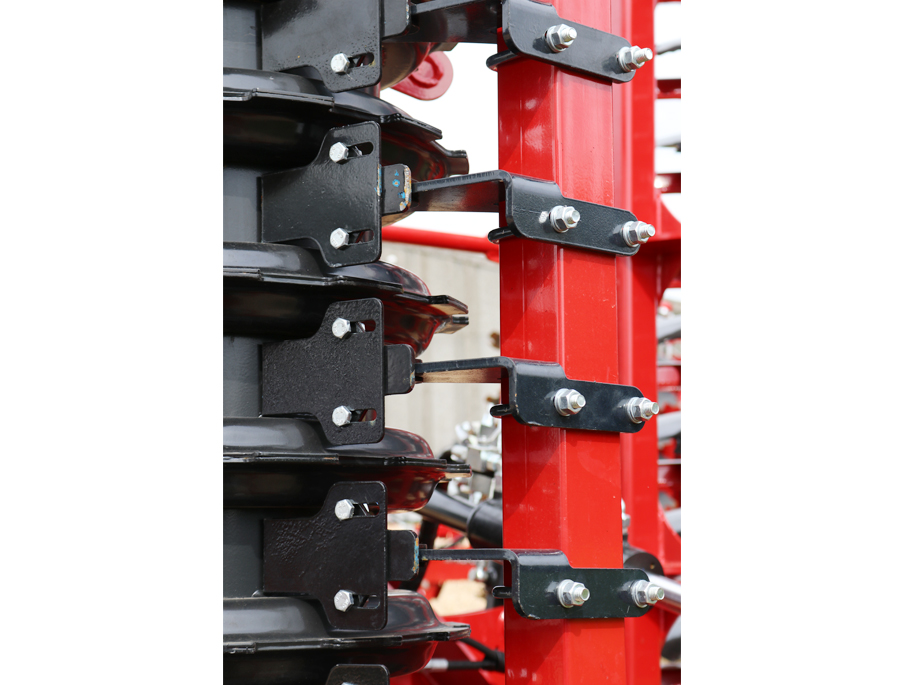

- Rubber shock absorbers and overload protection

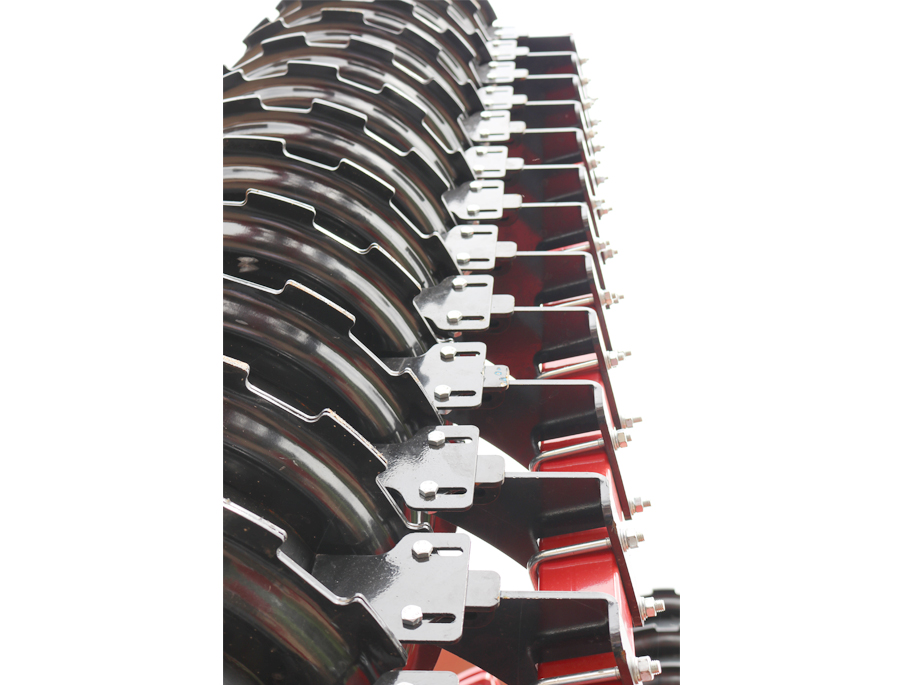

- Outer edge scalloped disc to provide level conditions between passes

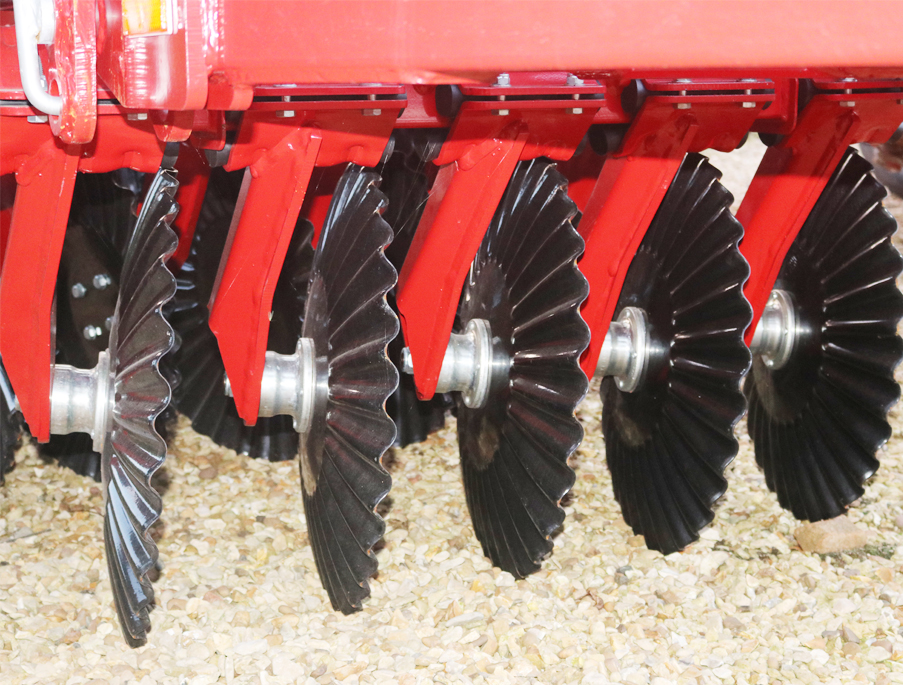

- 2 rows of class leading high quality 22” (560mm) Italian discs. (48 – 52 HRC Hardness), options of Cutaway or TopStir™ discs

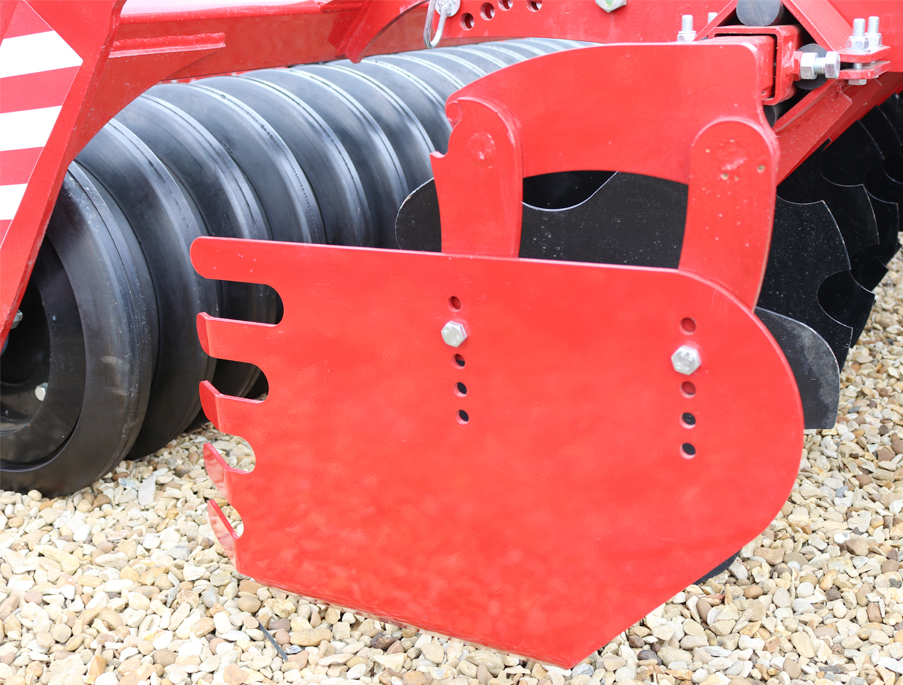

- Side soil deflectors
- All folding models have a transport width of under 3m
- Lighting kit as standard with all hydraulic folding models
- Option of hydraulic front levelling paddles on trailed versions
- Choice of rear packers for different soil conditions
- Option of hydraulic disc depth control
- Wheel Eradicator Bar (see pictures) available for Inverta trailed
TECHNICAL INFORMATION
| Model | Code | Total Machine Weight* (kg) | No of Discs | HP required** | |
|---|---|---|---|---|---|
| Rubber Packer | Steel Packer | ||||
| 3m Mounted | MN100112 | 1738 kg | 1768 kg | 24 | 105 |
| 3m with Stoka Bar | MN100112ST | 1738 kg | 1768 kg | 24 | 150 |
| 4m Folding Mounted | MN100113 | 3004 kg | 3044 kg | 32 | 130 |
| 4m Folding Trailed | MN100113T | 3804 kg | 3844 kg | 32 | 130 |
| 4.5m Folding Mounted | MN100114 | 3267 kg | 3312 kg | 36 | 145 |
| 4.5m Folding Trailed | MN100114T | 4067 kg | 4112 kg | 36 | 145 |
| 5m Folding Mounted | MN100115 | 3520 kg | 3570 kg | 40 | 160 |
| 5m Folding Trailed | MN100115T | 4320 kg | 4370 kg | 40 | 160 |
| 6m Folding Mounted | MN100116 | 4006 kg | 4066 kg | 48 | 180 |
| 6m Folding Trailed | MN100116T | 4806 kg | 4866 kg | 48 | 180 |
