With Autumn upon us, and most farms getting their teeth into the cultivation season, we thought now would be a good time to summarize the full Proforge Inverta disc harrow range. With over 500 machines sold throughout the UK and across the world since their inception in 2015, this family of Short Disc Cultivators have proved a huge success. But don’t take our word for it, here’s a few testimonials from just a few happy operators.
“The machinery is built to a great standard and after now covering at least 1500 acres is showing no wear to the discs. Maintenance is also minimal which is a plus point.”
“I’d also like to sing the Inverta’s praises. I took delivery of my 5m trailed model in March. A versatile, well designed and equally well-built machine easily capable of living with some of its more expensively priced competitors. Put it to work both in stubbles and ploughed/rolled medium to heavy land and makes an impressive job of either. Doesn’t need huge horsepower to pull it and can cover the ground quickly. Get a demo, see for yourself.”
”New Invertamin making a good job of breaking up a field of fast grass where cattle have over wintered. First impressions, a good purchase.”
“My Father has farmed here since 1964. We’ve tried a number of brands over the years and these are the best set of discs (InvertaMaxPro) we have ever had. Does everything it says on the tin. We’ve been running at 15kph and we’re on heavy land. Worked in wet and dry weather. Can’t praise it enough.”
On this basis, there can be little doubt over the range’s effectiveness – all that remains is to ascertain which one might be the right fit for your farm.
Let’s start at the very beginning. With the latest and greatest often dominating the farm machinery headlines, let’s take a minute to focus on the smallest cultivator in the Inverta family, the Proforge Invertamin. This is a light yet reliable disc harrow, compatible with a smaller budget and designed for use on the small and medium-sized farms where low horsepower tractors are used. This cultivator is an effective primary and secondary cultivator that helps small farms improve efficiency and economy, without having to make overly costly investments.
Key Features:
3pt linkage mounted
510mm (20”) cutaway discs on SKF maintenance free bearings and sprung arms
1150kg weight
95HP requirement
500mm crumbler roller, with tooth packer option also available
Uses the same readily available parts as the Inverta and Invertamax
Next up, it’s our best-selling, original primary and secondary cultivator, the Proforge Inverta. The Inverta® is designed for high-speed, low-cost residue inversion and stale seedbed creation. It is an efficient short disc cultivator maximising productivity on many soil types and working conditions. This particular model comes in a large range of widths (3 metre – 6 metre) and is available both as mounted or trailed from 4 metres, with many optional extras to suit your needs.
Key Features:
High operating speeds 10 – 15km/h with low horsepower requirement
560mm (22″) Cutaway High Quality OFAS Discs on Maintenance-Free Agri-Hub Bearings
All folding models have a transport width of under 3m
Hydraulic lock down wings for even penetration across the whole width in hard and difficult conditions
Lighting kit as standard with all hydraulic folding models
Optional Hydraulic Front Levelling Paddles available on trailed versions
Optional Wheel Eradicator Bar available on trailed versions
This 3 metre model is a front-mounted version of the regular Inverta featuring the same unparalleled quality of wearing metal, with swivelling twin depth wheels. It has been developed for both primary stubble cultivation and secondary cultivation on dry, heavy land. If you’re running a rear-mounted cultivator like the regular Inverta, Disrupta, Stoka or other 3 metre implements, this makes a great combination cultivator. The front-mounted Inverta optimises tillage operations, especially single pass ‘min/max’ seedbed creation. It has also proven very effective in levelling ridges following potato lifting.
Key Features:
560mm OFAS Cutaway Discs on rubber suspension mounts, with SKF maintenance free sealed bearings
Long life rubber shock-absorbing suspension on the disc arms ensures a smooth ride for the tractor driver
Working depth is set via the front depth wheels and pitch adjustment via the top link
Outer discs fold up to facilitate a narrow transport width
1300kg weight

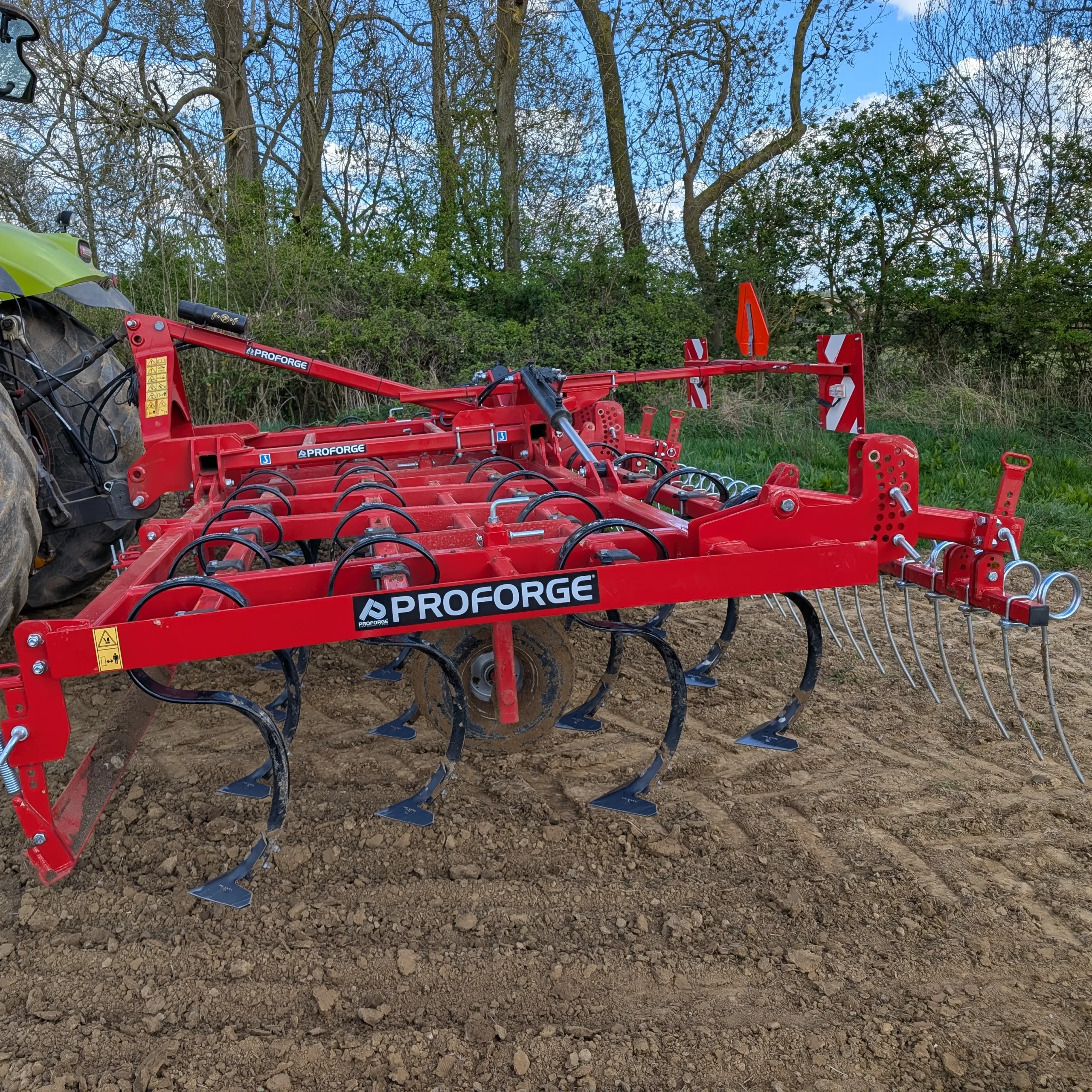

This configuration features the regular Proforge 3 metre mounted Inverta coupled to a demountable tine bar, to create a one-pass, auto-reset, tine-disc-press combination. Designed as an advanced alternative to the ever-popular Simba X-Press 3 metre with ST Bar combination, this is a highly effective machine. The demountable tine bar can also be used in its own, as well as making an effective companion to a variety of other cultivators on the market, including mounted Simba X-Press’s, Opico VariDisc, Lemken Rubin / Heliodor, Kuhn Optimer and the Vaderstad Carrier. This is a truly versatile machine and can be purchased as a combination with the 3 metre mounted Inverta, or as the demountable ‘Stoka Pro’ tine bar separately.
Key Features:
Close couple main frame – Cat 3 tractor linkage – Frame suitable for 130-300hp tractors
Pin Adjust Depth Wheels for positive depth control enabling high forward speeds
5 x Heavy Duty Spring Auto Reset Tines create a ground shattering action
Staggered tine spacing copes with high trash density
Tines work successfully from 50-300mm deep
Universal Double heart share point fitted as standard (low running cost) other points options available on request
Stoka Pro can be used very successfully on its own as a deep chisel plough – ideal for busting up compacted headlands or tramlines
Available in both trailed and mounted variations in a range of widths (3 metre, 5 metre and 6 metre, 8 metre, 10 metre, 12 metre), the Inverta Pro is based on the best-selling Inverta model but comes with a double ‘Soil2Soil’ packer with hydraulic depth adjustment. Once again, the same wearing parts (bearings, discs) are used which are featured across the Inverta range.
Key Features:
560mm (22″) Cutaway Discs with outer edge scalloped disc to provide level conditions between passes
Maintenance Free Bearings
High operating speeds between 10 – 15km/h
Double Row U-Channel Soil2Soil Packer 540mm with Hydraulic Depth Adjustment
90cm between Front and Rear Discs
Wing Support Depth Wheels – Pivoting Twin-Wheel Set each side with hydraulic adjustment
Optional Front Levelling Boards.
Automatic Transport Lock
Hydraulic drawbar jack
Hydraulic Levelling Boards are available as an extra on some models
Introducing the Proforge Invertamax, an ideal heavy primary cultivator for heavy stubble tillage as an effective substitute for ploughing. This machine is designed to till tough and hard soils in one pass saving time and costs. The larger diameter blade and extra weight gives it the capability to bury large amounts of trash or green cover to significant depth. Once again, a range of configurations in different widths are available.
Key Features:
High operating speeds, 10 – 15km/h with low horsepower requirement
Twin hydraulic lock down wings for even penetration
2 rows of large 25” (620mm) Italian Cutaway discs
Aggressive angle of discs for maximum performance in hard and harsh conditions
High ground clearance
The 2 rows of discs are spaced apart at 1050mm to allow maximum through flow of soil and trash
This is the flagship heavy duty cultivator from the Proforge range, the latest and largest disc harrow developed from our INVERTA and INVERTAMAX machines. This machine was reviewed by one customer as “the best set of discs we’ve ever had”. The build quality of the INVERTAMAXPRO® lives up to its name. The INVERTAMAXPRO® is an affordable and reliable heavy speed disc cultivator solution, for those with heavy arable soils, available in five or six metre widths.
Key Features:
Large 620mm Discs with large maintenance-free disc hubs
Class-leading SKF bearings
Aggressive disc angle for maximum performance
High operating speeds, 10 – 15km/h with low horsepower requirement
High ground clearance, allowing operation even with high crop residues
3-Part machine creates less stress on the frame, eliminating jamming
Twin hydraulic lock down wings for even penetration
Double Soil2soil Packer
3-part machine creates less pressure on the drawbar, but stronger pressure on the land
Brakes and lighting kit fitted as standard
Front depth wheel kits available as an extra.
If you’re thinking about purchasing a Proforge Inverta after reading this article, check out our UK user map—you might find a machine from the Inverta family closer than you expect! We’d be happy to connect you with a nearby operator. Simply reach out to us with your postcode or give us a call at 0333 251 5481.
